Straightening Vane

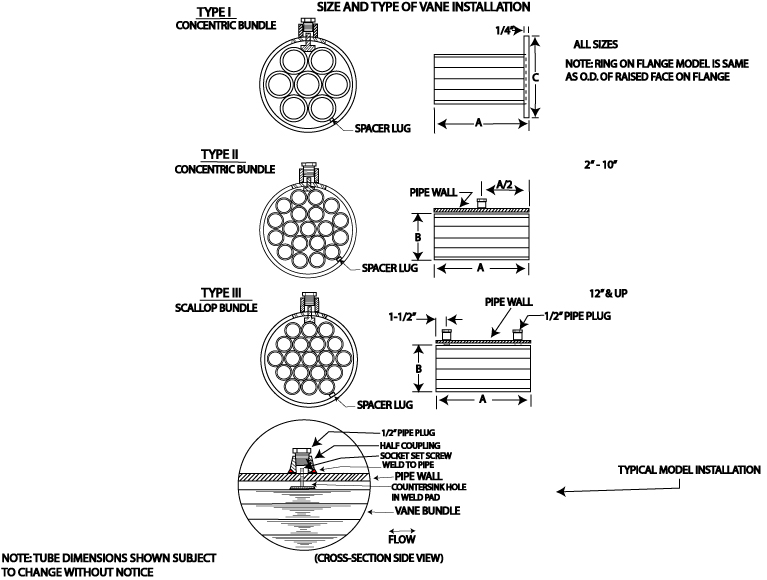

EBG offers Straightening Vanes for installation in any application where non-turbulent flow is necessary for accurate flow measurement.
A straightening vane is installed upstream of the metering section ensuring a smooth flow and a more accurate, consistent flow profile.
 |
| Straightening Vane | |||||||||||
| Line Size | Type of Vane | Line I.D. | Length of Vane | O.D. of Vane | O.D. of Tubes | Wall Thickness of Tubes | No. of Tubes | Line Model | Approximate Weights | Flg. O.D. | |
| No. & size of screws | Flange Model | Line Model | |||||||||
| A | B | D | E | LBS. | LBS. | C | |||||
| 2" | I | 2.067" | 6" | 1-31/32" | 21/32" | 0.095" | 7 | 1-3/8" x 3/4" | 3 | 2 | 3-5/8" |
| 2" | I | 1.939" | 6" | 1-29/32" | 21/32" | 0.095" | 7 | 1-3/8" x 3/4" | 3 | 2 | 3-5/8" |
| 3" | II | 3.068" | 8" | 2-7/8" | 19/32" | 0.049" | 19 | 1-3/8" x 3/4" | 4 | 3 | 5" |
| 3" | II | 2.900" | 8" | 2-3/4" | 9/16" | 0.049" | 19 | 1-3/8" x 3/4" | 8 | 7 | 5" |
| 4" | II | 4.026" | 10" | 3-31/32" | 13/16" | 0.049" | 19 | 1-3/8" x 3/4" | 8 | 7 | 6-3/16" |
| 4" | III | 3.826" | 10" | 3-3/4" | 3/4" | 0.049" | 19 | 1-3/8" x 1" | 8 | 7 | 6-3/16" |
| 5" | II | 5.047" | 12" | 4-27/32" | 1" | 0.049" | 19 | 1-1/2" x 1" | 11 | 9 | 7-5/16" |
| 6" | II | 6.065" | 12" | 5-15/16" | 1-7/32" | 0.049" | 19 | 1-1/2" x 1" | 21 | 19 | 8-1/2" |
| 6" | II | 5.761" | 12" | 5-5/8" | 1-5/32" | 0.049" | 19 | 1-1/2" x 1" | 21 | 19 | 8-1/2" |
| 8" | II | 7.625" | 16" | 7-15/32" | 1-1/2" | 0.065" | 19 | 1-1/2" x 1" | 37 | 35 | 10-5/8" |
| 8" | II | 7.981" | 16" | 7-29/32" | 1-5/8" | 0.065" | 19 | 1-1/2" x 1" | 37 | 35 | 10-5/8" |
| 10" | III | 10.136" | 20" | 10" | 2" | 0.083" | 19 | 1-1/2" x 1" | 57 | 54 | 12-3/4" |
| 10" | II | 10.020" | 20" | 9-3/4" | 2" | 0.083" | 19 | 1-1/2" x 1" | 57 | 54 | 12-3/4" |
| 12" | III | 12.090" | 24" | 11-7/8" | 2-3/8" | 0.083" | 19 | 2-1/2" x 1-1/4" | 81 | 77 | 15" |
| 12" | III | 11.374" | 24" | 11-1/4" | 2-1/4" | 0.095" | 19 | 2-1/2" x 1-1/4" | 81 | 77 | 15" |
| 12" | II | 11.938" | 24" | 11-5/8" | 2-3/8" | 0.083" | 19 | 2-1/2" x 1-1/4" | 81 | 77 | 15" |
| 14" | III | 13.250" | 28" | 13-1/8" | 2-5/8" | 0.083" | 19 | 2-1/2" x 1-1/4" | 105 | 100 | 16-1/4" |
| 14" | II | 13.000" | 28" | 13-3/4" | 2-5/8" | 0.083" | 19 | 2-1/2" x 1-1/4" | 105 | 100 | 16-1/4" |
| 16" | III | 15.250" | 30" | 15" | 3" | 0.188" | 19 | 2-1/2" x 1-1/4" | 274 | 268 | 18-1/2" |
| 16" | II | 15.500" | 30" | 14-19/32" | 3" | 0.188" | 19 | 2-1/2" x 1-1/4" | 274 | 268 | 18-1/2" |
| 18" | II | 16.876" | 36" | 16-23/32" | 3-7/16" | 0.188" | 19 | 2-1/2" x 1-1/4" | 386 | 378 | 21" |
| 20" | II | 19.250" | 40" | 18-27/32" | 3-7/8" | 0.188" | 19 | 2-1/2" x 1-1/4" | 477 | 468 | 23" |
| 24" | II | 23.250" | 48" | 23-1/8" | 4-3/4" | 0.188" | 19 | 2-1/2" x 1-1/4" | 704 | 693 | 27-1/4" |
| 26" | III | 25.250" | 52" | 25" | 5" | 0.188" | 19 | 2-1/2" x 1-1/4" | 814 | 796 | 29-1/2" |
| 30" | III | 29.250" | 60" | 28-3/4" | 5-3/4" | 0.188" | 19 | 2-1/2" x 1-1/4" | 1295 | 1273 | 33-3/4" |
| 34" | II | 33.250" | 68" | 32-13/16"" | 6-3/4" | 0.250" | 19 | 2-1/2" x 1-1/4" | 1880 | 1860 | 38" |
| 36" | III | 35.250" | 72" | 35" | 7" | 0.188" | 19 | 2-1/2" x 1-1/4" | 1582 | 1860 | 40-1/4" |
